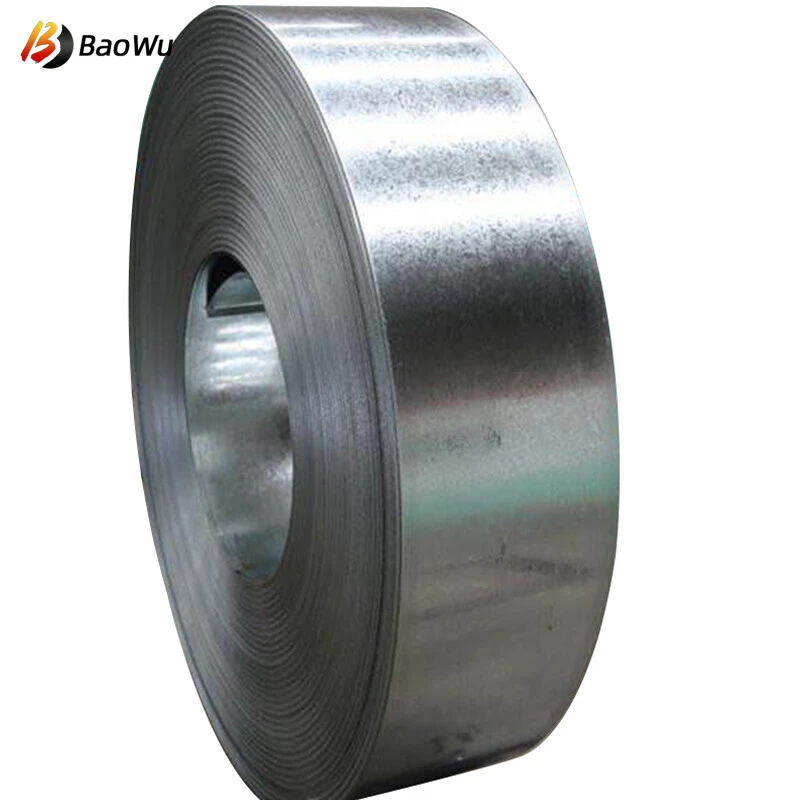

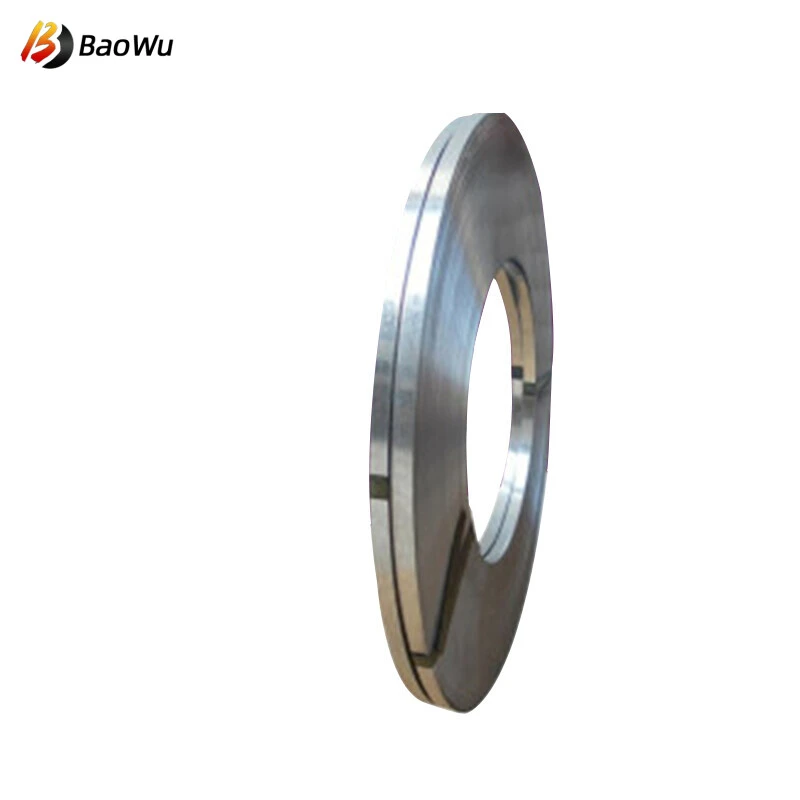

Details of Galvanized Steel Strip
| Production: | Galvanized steel strip |
| Grade: | DX51D+Z, DX52D+Z, DX53D+Z, DX54D+Z, DX56D+Z, DX57D+Z, DC51D+Z, SGCC, SGCD, S220GD+Z, S250GD+Z, S280GD+Z, S320GD+Z, S350GD+Z, S550GD+Z |
| Types: | Commercial / Drawing / Deep Drawing / Structural quality |
| Width: | 20-600mm, or customized |
| Thickness: | 0.12-4mm， or customized |
| Type of coating: | galvanized |
| Zinc coating: | 30-400gsm |
| Surface treatment: | Oil,Passivation,chromium-free passivating,passivation+oil,chromium-free passivation+oil |
| Surface structure: | zero spangle / minimized spangle / regular spangle/ big spangle |
| Package: | Standard export package (Plastic film in the first layer,second layer is Kraft paper. Third layer is the tray) |
| Steel grades | Chemical composition% | Residual Element > | Tensile strength (MPa) | Yield strength (MPa) | |||||
| C% < | Si% < | Mn% < | P% < | S% < | Alt < | ||||
| SGCC, DX51D+Z | 0.07 | 0.03 | 0.50 | 0.025 | 0.025 | 0.020 | Cu<0.10 Ni<0.08 Cr<0.10 As<0.05 Sn<0.05 | 270-500 | 140-280 |
| DX52D+Z | 0.06 | 0.03 | 0.45 | 0.025 | 0.025 | 0.020 | 270-420 | 140-300 | |
| DX53D+Z | 0.03 | 0.03 | 0.40 | 0.020 | 0.020 | 0.020 | 270-380 | 140-260 | |
| S220GD+Z | 0.17 | 0.30 | 1.00 | 0.035 | 0.30 | 0.020 | 300-440 | >220 | |
| S250GD+Z | 0.17 | 0.30 | 1.00 | 0.035 | 0.30 | 0.020 | 330-470 | >250 | |
| S350GD+Z | 0.20 | 0.55 | 1.60 | 0.035 | 0.30 | 0.020 | 420-560 | >350 | |

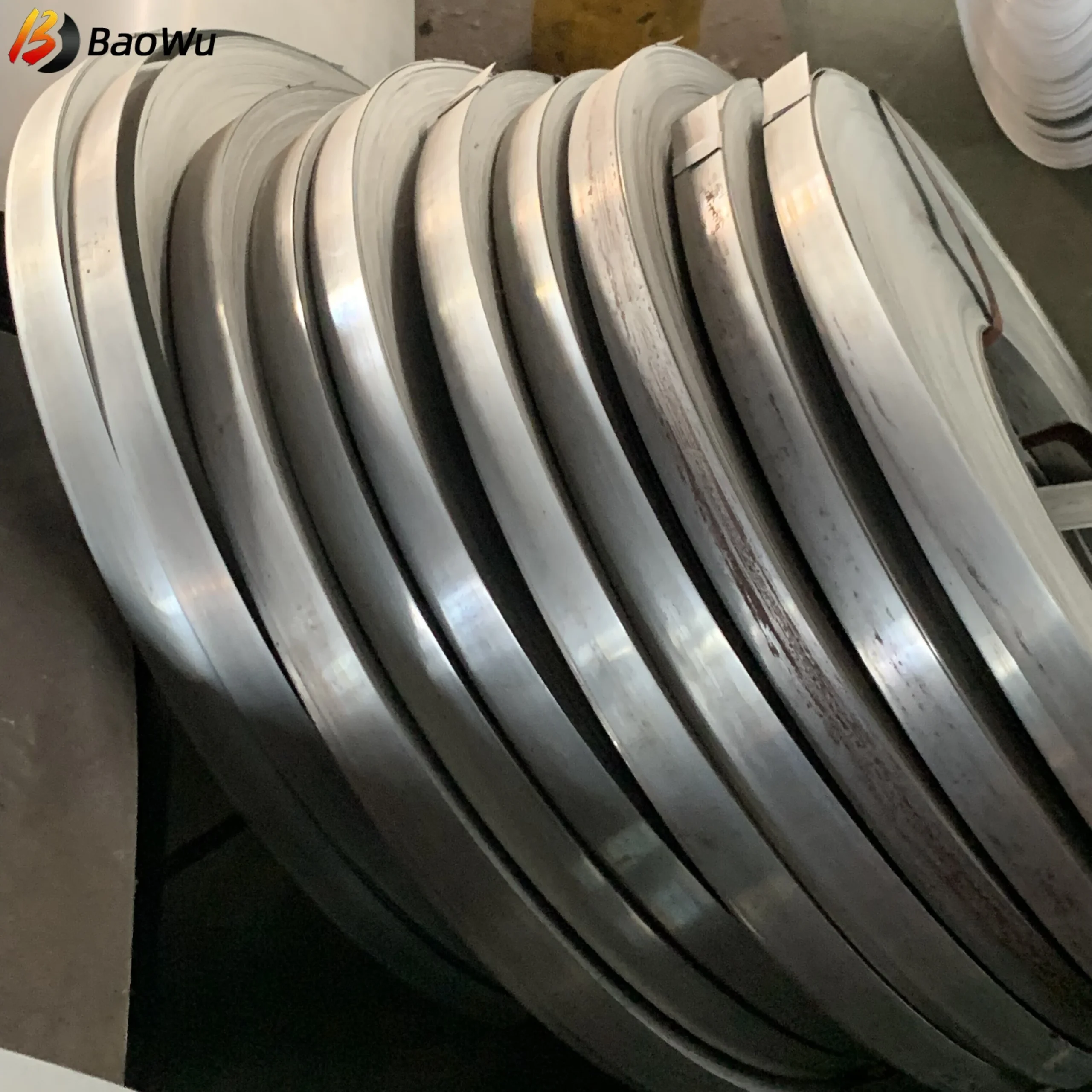

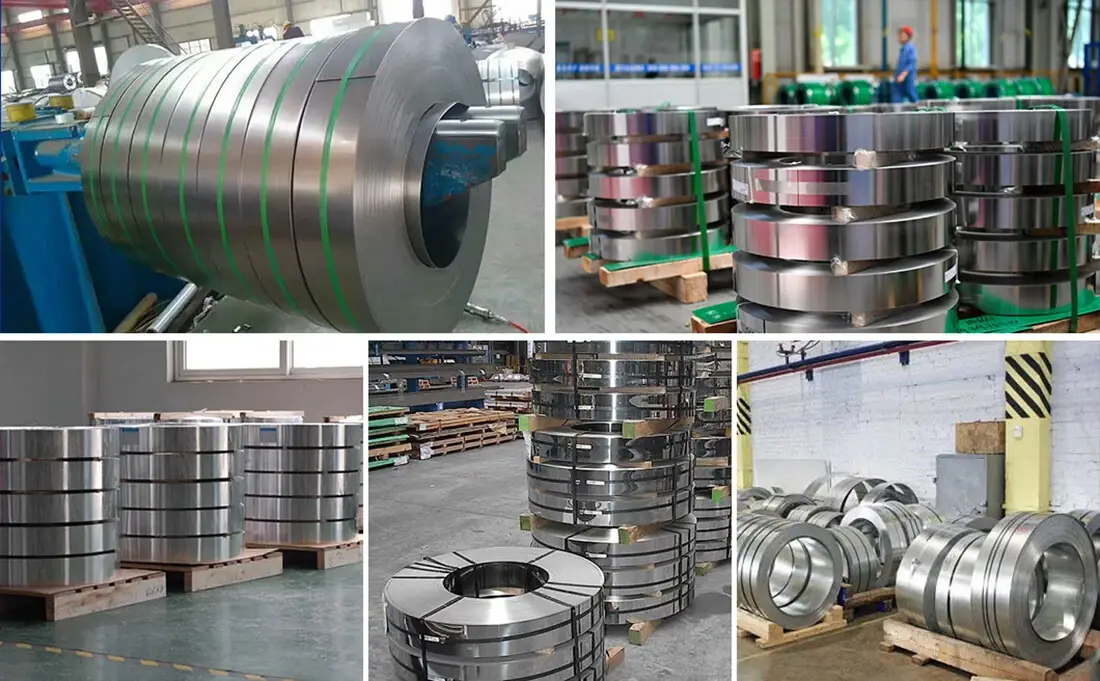

Display Of Galvanized Steel Strip
Product Application

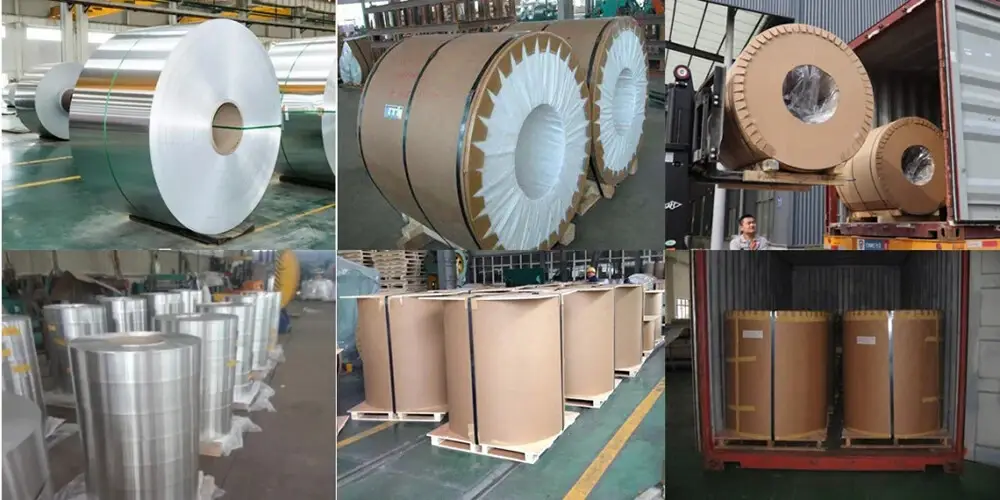

Packaging of Galvabized Steel Strip
Factory Display
FAQ
Q: Are you a factory or a trading company?
A：We are manufacturer and trader. You are welcome to visit our factory.Q: Can you guarantee the quality of your products?
A: We always insist on the best quality. We conduct 2 quality inspections one by one. Our mission: to be a world-class professional, reliable and excellent steel supplier.Q: Do you provide samples? ls it free or 2 extra?
A: Samples can be provided to customers for free, but the freight is borne by the customer. The sample freight will be returned to the customer after our cooperation.Q: What’s your minimum order quantity?
A: We welcome you to try the MOQ 25T, loaded into 1*20GP. Largequantity can reduce your cost.
